Aluminum (Al) Evaporation Material

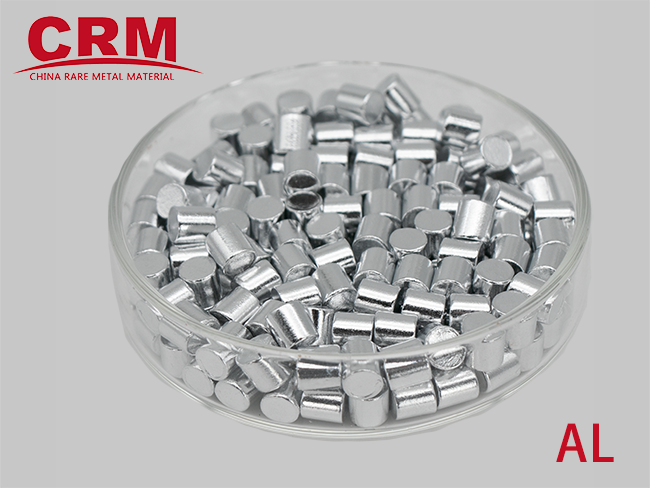

Aluminum pelletsAluminum Evaporation Materials - Al

Purity --- 99.99%,99.999%

Density at 293 K--- 2.702 g/cm3

Melting Point--- 660.37 °C     Boiling Point--- 2467.0 °C
Shape---Pellets, Cylinder, Taper, Wire, Screw, Custom-Made

Dimension---Pellets (1-5mm); Cylinder (Ф3*10mm、Ф3*6mm、Ф6*6mm);

Piece 0.2-15 mm; Wire  (0.2-15mm); Taper, Custom-Made

Evaporation temperature---Vapour pressure at 1000℃ 1 Pa, at 1120℃ 10 Pa
Solubility--- Soluble in acids and alkalis.
Properties of thin film---Refractive index at 550nm; 0.82
Hints on evaporation--- Evaporation with tungsten boat

Application--- Reflection coatings,electric film.

Aluminum evaporation materialOur Advantage

China rare metal material co.,limited (CRM) is an experter in manufacture Aluminum pellet as evaporation material . All Aluminum pellets are manufacture by programs with  with the highest possible density and smallest possible average grain size..

CRM material co.,limited is specialized in making virous pellet. We have many raw material compounds line, such as semiconductor line, chemical compounds line, metallurgy line, powder milling line, etc. Moreover, we introduced many advanced technology and equipments from related companies at home and aborad. We also have an experienced research team who have developed many new and special pellets, and also successfully made many trial orders and received many customers satisfaction and long-term friendship.

All aluminum pellets are analyzed using best detection means including chemical analysis, Crystal phase microscope, x ray diffraction(XRD), X-Ray Fluorescence (XRF), Glow Discharge Mass Spectrometry (GDMS), and Inductively Coupled Plasma (ICP).

Aluminium Base Information

Aluminum stuctureAluminum is a silvery-white metal with many valuable properties. It is light (density 2.70 g/cm3), non-toxic, and can be easily machined or cast. With an electrical conductivity 60% that of copper and a much lower density, it is used extensively for electrical transmission lines. Pure aluminum is soft and ductile, but can be strengthened by alloying with small amounts of copper, magnesium, and silicon.Aluminum weathers far better than iron, however, because the product of its corrosion, Al2O3, adheres strongly to the metal's surface, protecting it from further reaction. Aluminum have good electrical conductivity, and good thermal conductivity. Aluminum was used very widely in optical , calorifics,  electronical, decorative ...field.

CRM supply many kinds of aluminum (Al) products include aluminum rod, aluminum pellets, aluminum sputtering targets, aluminum wire, aluminum screw .... Especially we supply many kinds of high pure aluminum products in good quality and lower price.

Name: Aluminum
Symbol: Al
Atomic Number: 13
Atomic Mass: 26.981539 amu
Melting Point: 660.37 °C (933.52 °K, 1220.666 °F)
Boiling Point: 2467.0 °C (2740.15 °K, 4472.6 °F)
Number of Protons/Electrons: 13
Number of Neutrons: 14
Classification: Other Metals
Crystal Structure: Cubic Density @ 293 K: 2.702 g/cm3 Color: Silver
British Spelling: Aluminium
Iupac Spelling: Aluminium
