Antimony Oxide (Sb2O3)

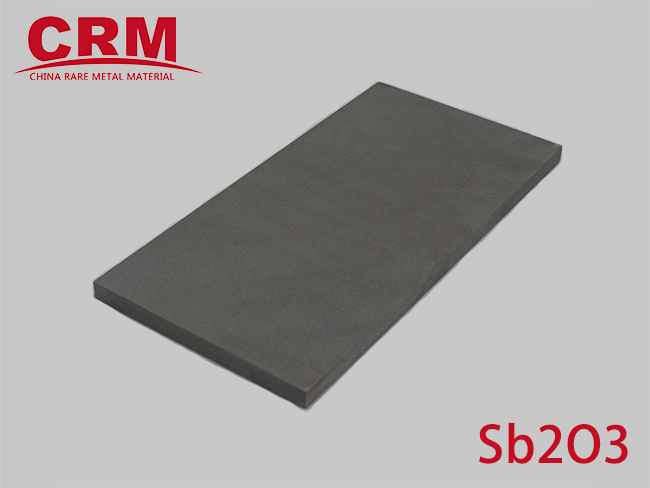

Sb2O3 Sputtering targetAntimony Oxide (Sb2O3) Sputtering Target

Purity - 99.99%,99.999%

Density -  5.2g/ cm3

Refractive Index/Transparence Wave Band  ---1.8~1.9 / 0.3~

Shape - Discs, Plate,Step ( Dia ≤480mm,  Thickness ≥ 1mm)

              Rectangle, Sheet, Step (Length ≤400mm, Width ≤200mm, Thickness ≥1mm)

Application - Coating

Antimony Oxide (Sb2O3) Evaporation Material

Color --- White

Purity --- 99.99%,99.999%

Shape --- Granule 1-6mm, 1-10mm

Application - Coating

Antimony Oxide (Sb2O3) Powders

Color --- White

Purity --- 99.99%,99.999%

Shape --- Powders,150mesh,300mesh

Application --- Antimony Oxide are used in many kinds of Engineering Plastics, Cables and Wires, Rubbers and Paints, Dopes ...field.

Antimony Oxide Performance - Sb2O3

Antimony(III) oxide is the inorganic compound with the formula Sb2O3. It is the most important commercial compound of antimony. It is found in nature as the minerals valentinite and senarmontite. Like most polymeric oxides, Sb2O3 dissolves in aqueous solutions with hydrolysis.

Antimony(III) oxide is an amphoteric oxide, it dissolves in aqueous sodium hydroxide solution to give the meta-antimonite NaSbO2, which can be isolated as the trihydrate. Antimony(III) oxide also dissolves in concentrated mineral acids to give the corresponding salts, which hydrolyzes upon dilution with water. With nitric acid, the trioxide is oxidized to antimony(V) oxide.

antimony oxide The structure of Sb2O3 depends on the temperature of the sample. Dimeric Sb4O6 is the high temperature (1560 °C) gas. Sb4O6 molecules are bicyclic cages, similar to the related oxide of phosphorus(III), phosphorus trioxide.[8] The cage structure is retained in a solid that crystallizes in a cubic habit. The Sb-O distance is 197.7 pm and the O-Sb-O angle of 95.6°. This form exists in nature as the mineral senarmontite. Above 606 °C, the more stable form is orthorhombic, consisting of pairs -Sb-O-Sb-O- chains that are linked by oxide bridges between the Sb centers. This form exists in nature as the mineral valentinite.

Safety: Antimony(III) oxide has suspected carcinogenic potential for humans. Its TLV is 0.5 mg/m3, as for most antimony compounds. No other human health hazards were identified for antimony(III) oxide, and no risks to human health and the environment were identified from the production and use of antimony trioxide in daily life.

Base Information

IUPAC name:Antimony(III) oxide
Other names:Antimony sesquioxide,Antimonous oxide,Flowers of Antimony
CAS Number:1309-64-4
ChemSpider:25727
Jmol 3D model:Interactive image
KEGG:C19192
RTECS number:CC5650000
UNII:P217481X5E

Chemical formula:Sb2O3
Molar mass:291.518 g/mol
Appearance:white solid
Odor:odorless
Density:5.2 g/cm3, α-form; 5.67 g/cm3 β-form
Melting point:656 °C (1,213 °F; 929 K)
Boiling point:1,425 °C (2,597 °F; 1,698 K) (sublimes)

Structure and properties:Refractive index (n),Dielectric constant (εr), etc.
Thermodynamic data:Phase behaviour,solid–liquid–gas
Spectral data:UV, IR, NMR, MS

Solubility in water:Dissolved concentration of 370 ± 37 µg/L was obtained with a loading of 10 mg/L after 7 days of exposure. Temperature varied between 20.8°C (t=0; start of the test) and 22.9°C
Solubility:soluble in acid
Refractive index (nD):2.087, α-form;2.35, β-form
Structure
Crystal structure:cubic (α)<570 °C;orthorhombic (β) >570 °C
Coordination geometry:pyramidal
Dipole moment:zero
