Boron Nitride (BN)

Hexagonal boron nitride is one kind of loose, lubricious and hygrometric white powder. Its theoretical density is 2.27/cm3, Mosh hardness is 2. Its mechanical strength is lower, but higher than the graphite’s . It has not the exact melting point , but sublimates at 3000 ℃ in 0.1Mpa nitrogen gas . The highest using temperature is 2800 ℃ in nitrogen or argon gas, but below 1000 ℃ in oxygen.

It has lower thermal expansion coefficient and higher thermal conductive rate , so its heat-resisting shaking ability is fine . The loop time from 1200 ℃ to 20 ℃ is more than one hundred and the BN has not been destoried .

Boron nitride belongs to hexagonal crystal system , its crystal structure is similar to graphite , so it is also called white graphite . B and N atom arrange to six-angle ring network alternately. The atoms in layer bond each other covalently and strongly, but the atoms between layers bond with molecular bond, so it is weak and ease to break. The atom space of B-N in each layer is 0.142nm, and the elastic modulus E is 910Gpa. But between layers it is 0.335nm and 30 Gpas respectively. Not only the structure of BN is consistent with graphite but also the lattice constant is similar.

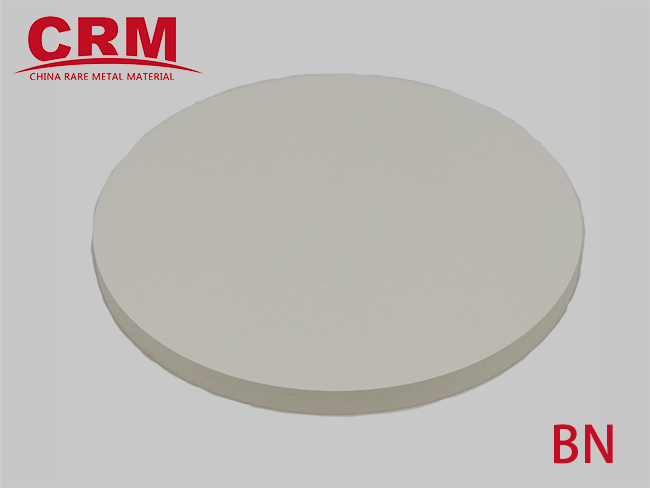

Boron Nitride (BN) Sputtering targets

Purity --- 99.5%     Density ---1.9~2.1g/cm3

Shape --- Discs, Plate, Step (Dia 360mm,,  Thickness 1mm)

                Rectangle, Sheet,  Step (Length 410mm, Width 300mm, Thickness 1mm)

Application --- Boron Nitride (BN) Sputtering Target can be use in semiconductor, physical vapor deposition (PVD) display and optical applications.

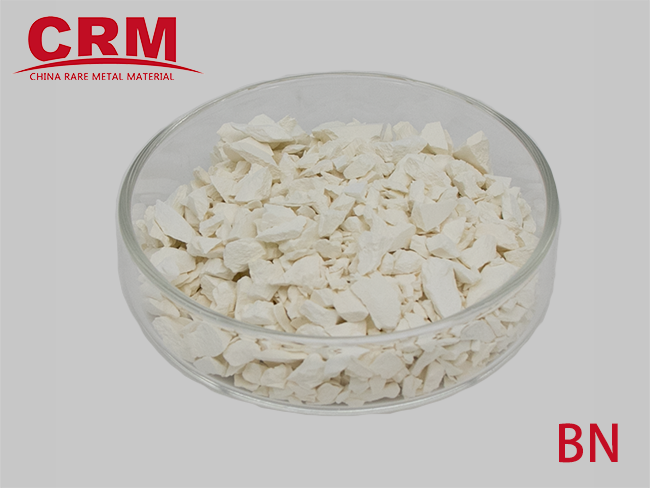

Boron Nitride (BN) Evaporation Material

Purity --- 99.5%     Density ---1.9~2.1g/cm3

Shape --- Irregularly  Piece

Size --- 1-10mm

Application --- Boron Nitride (BN) can be use in semiconductor, physical vapor deposition (PVD) display and optical applications.

Boron Nitride (BN) Boat

Purity --- 99.5%

Size ---

Boron Nitride (BN) Crucible

Purity --- 99.5%

Dia< 480mm

height < 100mm

Boron Nitride Products - Tube / Ring / insulates / fixtures / blanks / supports

Size --- Dia< 480mm , height < 100mm

Shape --- By drawing

Application --- Tube / Ring / insulates / fixtures / supports / blanks / other components

Boron Nitride (BN) Powder
Purity --- 99.5%

Shape --- Powder

Application --- structure material of atom reactor, spout of plane and rocket, lube of high temperature, compound cube boron nitride

Key  Properties of Boron Nitride

- High thermal conductivity

- Low thermal expansion

- Good thermal shock resistance

- High electrical resistance

- Low dielectric constant and loss tangent

- Microwave transparency

- Non toxic

- Easily machined — non abrasive and lubricious

- Chemically inert

- Not wet by most molten metals

Typical Application of Boron Nitride

- Electronic parts — heat sinks, substrates, coil forms, prototypes

- Boron doping wafers in silicon semiconductor processing

- Vacuum melting crucibles

- CVD crucibles

- Microcircuit packaging

- Sputtering targets

- High precision sealing, brazing, and metallizing fixtures

- Microwave tubes

- Horizontal caster break rings

- Low friction seals

- Plasma arc insulators

- High temperature furnace fixtures and supports

- Various types of components for semiconductor manufacturing equipment
- Metal/glass demolding/corrosion resistant material
- Electronic components assembling jigs
- Electric furnace insulation members
