Germanium (Ge)
Germanium_targetGermanium is a grayish-white metalloid which is brittle and crystalline. Electrically it behaves as a semiconductor. Its chemistry is similar to that of silicon, and it has applications as an alternative to silicon as a basis for solid state electronic devices.
As a usually thin film material, Germanium targets are used more and more widely. The shape includes disk, sheet, tube, step, taper and so on. Also we can make some hole and screw  on the target base on your require. The surface is very beautiful. They are used in  widely optics , electron ,decorate, and so on. Germanium is a usually metal, It was used widely in I.R. optical , electronical,  decorative ...field.
Basic Information
Name: Germanium
Symbol: Ge
Atomic Number: 32
Atomic Mass: 72.61 amu
Melting Point: 937.4 °C (1210.55 °K, 1719.3201 °F)
Boiling Point: 2830.0 °C (3103.15 °K, 5126.0 °F)
Number of Protons/Electrons: 32
Number of Neutrons: 41
Classification: Metalloid
Crystal Structure: Cubic
Density @ 293 K: 5.323 g/cm3
Color: grayish

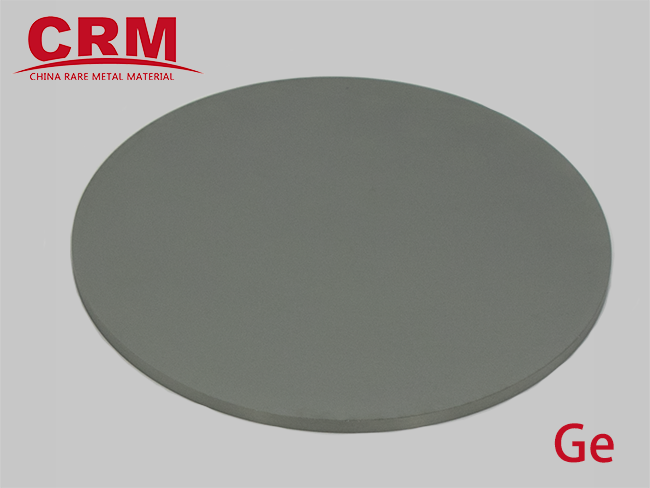

Germanium_Sputtering_target Ge target bonded with copper plate Germanium Sputtering Target ( Ge Target )

Purity--- 99.999%

Shape--- Discs, Plate,Step (Dia ≤305mm,  Thickness ≥0.8mm)

                Rectangle, Sheet, Step (Length ≤600mm, Width ≤305mm, Thickness ≥0.8mm)

                Tube( Diameter< 305mm,  Thickness >4mm, Silicon rotary target )

Application---High index film in infrared filters, IR.Coating

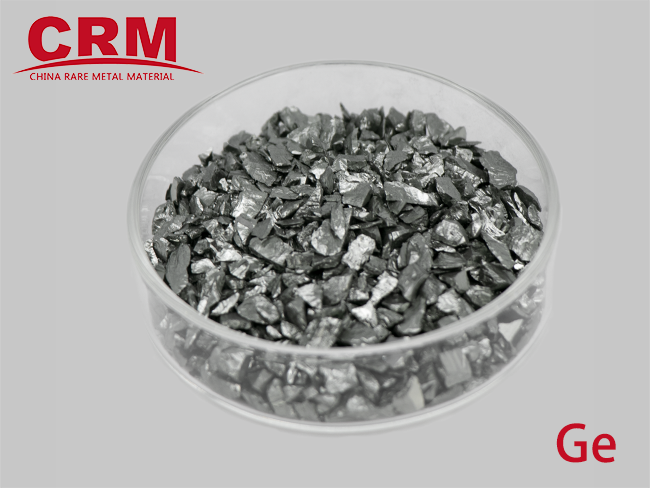

Germanium_granule Germanium Evaporation Material

Purity--- 99.999% or international standards type

Refractive Index--- 4.4/2000 nm

Transmission Range--- 170-23000 nm
Evaporation Temperture--- 1300-1500 ℃
Typical Source--- E,W

Specification--- custom-made
Shape--- Irregular piece(1-5mm) , cylinder, pellet, taper

Application  ---  I.R. Coating

Germanium Slice ( Ge pellet, Ge disk, Ge cirque, Ge Taper, Ge Bread, Ge sphericity, Ge half ball)

Purity---99.999% Monocrystalline Ge, PolyGermanium Ge

Shape--- Disk, Cirque, Polygon, by drawing

Application --- Primary used manufacture semiconductor element, IR. optical element, solar cell substrate.... Recently people begain to used in chinese acupuncture.

Germanium Spherical Lens ( Ge Lens)

Purity---99.999%

Shape --- Disk ( dia 15mm- 200mm ) Tolerance (Dia: <0.03mm, Curvatures: <0.05%, Center thickness: <0.05mm)

Application --- Primary used for IR filter,CO2-Laser window, lens and window for 8-12um infrared imaging systems etc.

Germanium Metal

Purity---99.999%

Shape--- Monocrystalline Ge, PolyGermanium Ge, Rod, Granule

Germanium Rod

Purity--- 99.999%

Dia--- 30-120mm     Length--- custom made

Application --- Primary used manufacture semiconductor element, IR. optical element, solar cell substrate....

Germanium Substrate

Purity--- 99.999%

Dia--- 30-120mm    Length--- custom made Surface --- Polished one side or two side

Application --- semiconductor parts, optical parts,  underlay of solar battery , window and so on
