Your current location :Home > Lanthanum Titanate (LaTiO3)

Lanthanum Titanate Coating Materisls (LaTiO3)

Crystal Evaporation Material is the high refractive index Mixture researched and developed by our company independently with patent protection. It is applied for the coating of antireflection films and multilayer. The product has the following characteristics:

  • Uniform components, large density and high purity;
  • *Visible to near-infrared waveband without absorption, 360nm - 7000nm high transmittance;
  • Melt completely before deposition;
  • No deflation and splash in the melting process;
  • Uniform film with consistent thickness.
  • Basic Properties:

     Refractive Index (550nm)

     Color

     Purity

     Melting Point

     Density

     Evaporation Temperature

     Product Form

     2.10

      Black

     99.95%

     1800ºC

     5.90g/cm3

     2200-2300°C

      0.4-4.0mm

    The test report of KT01 Crystal Evaporation Material

    1. The optical properties of single film:

    Evaporation conditions:

    Starting vacuum degree

    Oxygen partial pressure

    Deposition rate

    Substrate temperature

    Film thickness

    Substrate

    Vacuum coating machine

    3×10-3Pa

    8×10-3Pa

    4A/S

    350℃

    4.5KA

    Bk7

    OPTORUN Super AR-1300

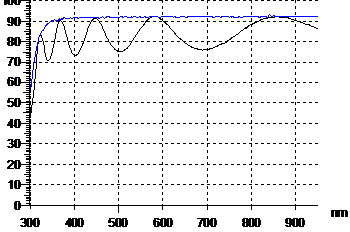

    Fig.1 The transmittance spectra typical for films of KT01 Crystal Evaporation Material



    Tab.1 Data on refractive index and absorption index calculated from transmission and reflection data:

    Wavelength(nm)

    n

    k

    364.85

    2.16622

    0.00033

    398.32

    2.11311

    0.00058

    441.85

    2.07821

    0.00046

    498.09

    2.05059

    0.0003

    575.26

    2.03796

    0.00013

    682.99

    2.02716

    0.00035

    853

    2.00849

    0.00114



















    2. Evaporation film spectral curve of AR Mutilayers (seven) comparison chart between KT01 Crystal Evaporation Material and H4 evaporation Material

    3. AR film reliability test

    Project

    Conditions

    Results

    Environmental test

    Lasting: 48H

    Through test, there is no mist and devitrification. The spectral curve has no apparently change. Both appearance and function are ok.

    Temperature: 80℃∽-20℃

    Humidity: 75%

    Circle index: 4

    Film toughness test

    (after the environmental

    test)

    Moisten stencil paper with acetone. Wipe back and forth at the same place for 25 times with 1-2kg

    strength

    The film doses not peel off. Regard as ok.

    Make the high-strength rubber belt closely cling to the lens surface. Quickly tear out the belt in 90 degree. Repeat it at the same place for 3 times.

    4. Conclusion:

    In the vapor deposition of KT01 Crystal Evaporation Material, there is no spattering. And Material outgassing is minimal. The refractive index is stable. It has good repetitiveness. This material is suitable for stable batch

    production of the AR film.

    Lanthanum Titanate (LaTiO3) Sputtering Target

    Purity---99.9%

    Melting point---2200-2300 ℃

    Shape--- Discs, Rectangle, Step, Circle, Tube, Custom-Made

    Diameter--- Dia (≤250mm),

    Length---(≤600mm), Width---(≤250mm) Thickness---(≥1mm)

    Lanthanum Titanate (LaTiO3) Powder

    Purity---99.9%

    Size --- 325mesh, 150mesh, 100mesh
