Your current location :Home > Molybdenum metal - Mo
Molybdenum (Mo)Metal

molybdenum metal CRM material co.,limited supply many kinds of pure Molybdenum metal product. For Molybdenum have some advantage in chemical and physical, it used widly in  High-temperature furnace, glass and crystal producing,  vacuum plating, illumination, rare earth.Now china rare metal material can supply Molybdenum block, rod, tube, plate, foil, wire, substrate, sputtering target, Boat, hoop,cake crucible, screw, nut,Flowing Nozzles (flow control in high temp environment) and any other machinable form. Also CRM material co.,limited can machine molydbenum very exactitude, machine include HIP,Sintering, forging, rolling, grind and polishing .... CRM glinding molybdenum, the surface is very good, no any chap and crack. CRM can lathe screw very good.

Basic Information

Name: Molybdenum
Symbol: Mo
Atomic Number: 42
Atomic Mass: 95.94 amu
Melting Point: 2617.0 °C (2890.15 °K, 4742.6 °F)
Boiling Point: 4612.0 °C (4885.15 °K, 8333.6 °F)
Number of Protons/Electrons: 42
Number of Neutrons: 54
Classification: Transition Metal
Crystal Structure: Cubic
Density @ 293 K: 10.22 g/cm3 Color: silverish

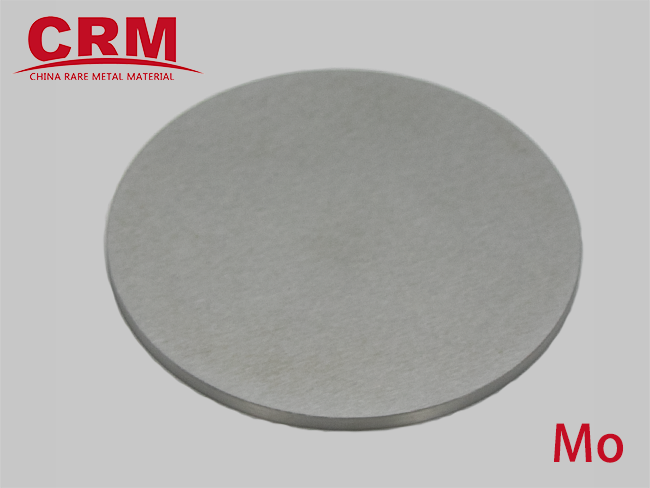

Molybdenum (Mo) Sputtering Targets

Purity --- 99.95%,99.99%,

Shape --- Discs, Rectangle, Tube, Custom-Made

Diameter--- Dia (≤360mm), Length---(≤800mm), Width---(≤360mm), Thickness---(≥1mm)

Molybdenum  (Mo) Evaporation Materials

Purity --- 99.95%,

Shape ---  Irregular pieces, pellet, Slug

Dimension---3-8mm   irregular pieces

Molybdenum  (Mo) Sinter Tubes

Purity --- 99.95%,

Outer Diameter --- 3-300mm, Thickness --- 1mm-10mm,  Longth --- 650mm

Application --- raw material of revolve roll molybdenum tube

Attached--- our Mo seamless tube have two fabrication method, one is sinter molybdenum tube, one is dig hole from sinter molybdenum rod

Molybdenum  (Mo) Seamless Tubes

Purity --- 99.95%,

Outer Diameter --- 3-340mm, Thickness --- 0.5mm-10mm,  Longth --- 1500mm

Application --- protect tube of  thermocouple, raw material of revolve roll molybdenum tube

Attached--- our Mo seamless tube have two fabrication method, one is sinter molybdenum tube, one is used sinter molybdenum tube through revolve roll , can be used in   Inert、Vacuum、Reducing

Molybdenum  (Mo) Wire

Purity --- 99.95%

Diameter --- 1-4mm , Density --- 10.2g/cm3

Application --- support bar, wire core, derivation wire, thermal spraying wire Spray molybdenum wire : Single wire of 10kg has no welded joint. It is regular black with smearing graphite surface. After removed grahpite, it is metallic luster.Refing spraying for wear and tear parts of truck and mechanical wearing to enhance their wearability.Coils in carton wrapped with waterproof paper and plastic bag inner and firmed by waterproof paper and blown molding foam at the bottom

Molybdenum  (Mo) Wire

Purity --- 99.8%,99.95%

Diameter --- >0.02mm

Application --- Used for grids in electron tubes, hook, support bar, wire core and cutting lines,etc.It is regular black covered with graphite. After removed graphite,it is metallic luster.

Package--- If Dia<0.04mm can be coilson plastic spool in plastic box or vacuum packing.

Molybdenum  (Mo) Screws & Nuts

Purity --- 99.95%, Diameter --- 6-350mm,  Length --- Custom-made

Application --- high pure furnace, high pure invirement, hard part

Molybdenum  (Mo) Rods ( Electrode )

Purity --- 99.95%,

Diameter --- 6-100mm, Density > 9.8G/CM3, Length --- Custom-made

Application --- In Glass industry, Molybdenum electrode can be used in 1300℃ for a longer time, also can be used rare earth industry

Molybdenum  (Mo) Rods ( Rolling Mo Rod )

Purity --- 99.95%,

Diameter --- 6-17mm,  Length --- Custom-made,

Shape --- round rod, hexangular rod

Application --- The surface of rolling Mo rods are flatness, and the color is  Black-gray or  Gray. It can be used draw Mo wire, vacuum tube, core wire, electric lamp-house bracket.

Molybdenum (Mo) Foils and Sheets

Purity --- 99.95%, Thickness --- 0.1~20mm

Applicatin --- Molybdenum foil as heat element, reflect screen in high temperature furnace

Molybdenum (Mo) Boats (Evaporation Material Accessories)

Purity---99.95%, Thickness---0.1~0.5mm,  Shape --- By drawing

Application --- Evaporation souce, heat element

Molybdenum Powder (Mo Powder)

Purity---99.95%,

Shape --- 300 mesh

Application --- Thermal spraying coating material...

Molybdenum (Mo) Crucibles

Purity---99.95%,O<0.015%,N<0.005%, Si<0.002%,C<0.005%,

Diameter --- 100mm-220mm, Thickness---1mm-20mm,

Density > 9.6G/CM3

Application ---mainly used  metallurgy industry and machine process industry, it can be used in 1100℃ longer term

Impurity Content( Only As Reference )
Element(Sign) Mo Al Ca Cr Cu Fe Pb Mg Mn Ni Si Sn Ti
Content(wt%) 99.95 0.001 0.003 0.005 0.001 0.005 0.002 0.001 0.001 0.001 0.003 0.003 0.002
