Nickel Chromium alloy (NiCr Alloy)

Nickel chromium alloy ( Nichrome ) is usually be alloy in Ni80wt% and Cr20wt%, silvery white, melting point about 2550 degree. It belong to high temperature alloy. Nichrome is a good corrosion resistance alloy material, when be oxide, the Chromium can be oxide and form an compact chromium oxide thin film in order to prevent to oxide again.  Nichrome  can be used many  fields. For examples, nichrome wire, and nichrome trip/net can be used in heat element. Nichrome thin film can be used corrosion reistance...

Nickel chromium also can be allou in Ni 60wt% and Cr 40wt%, the applications are developping.

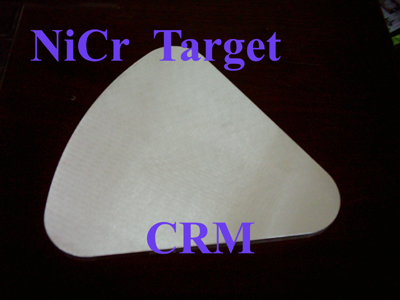

Nickel  Chromium alloy Sputtering Target ( NiCr Target )

Purity---Ni-Cr 80/20, 99%,99.5%,99.8%,99.9%,99.95%,99.99%

Shape--- Discs, Plate,Step,Taper (Dia 300mm,,  Thickness 1mm)

                Rectangle, Sheet, Step (Length 1000mm, Width 300mm, Thickness 1mm)

                Tube( Diameter< 300mm,  Thickness >2mm, rotary target)

Application --- Thin film resistors. Good adherence on non-metals. Good corrosion resistance.

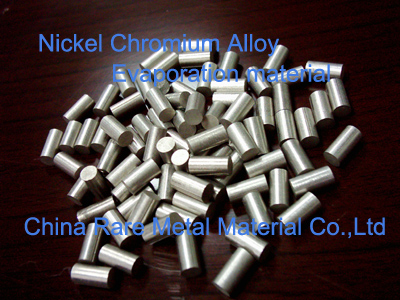

Nickel Chromium Alloy Evaporation material

Purity --- 99.9%,99.95%,99.99%  Density --- 7.96-8.48g/cm~3

Shape --- Wire, Cylinder, Pellet, Taper

Application --- Thin film resistors. Good adherence on non-metals. Good corrosion resistance.

Nickel Chromium Alloy Product ( NiCr alloy tube, wire, rod, foil,  slab, disk, granule, Lump... )

Purity --- Ni-Cr 80/20  99.9%,99.95%,99.99%

Speciafication --- Wire (diameter 0.1mm - 2mm), Rod (diameter2mm - 120mm ),Foil (thickness to 0.25mm - 1.0mm, width < 30cm)

                                Slab (thickness 1cm - 30mm, width < 400mm), Disc (diameter < 35cm, thickness  0.1mm - 30mm )

Nickel Chromium Thermal Spraying Powder ( NiCr alloy Powder ) --- Metco43

Purity --- Ni-Cr 80/20  99.9%

Speciafication --- 300mesh

Nickel Chromium Alloy Powder ( NiCr alloy Powder )

Purity --- Ni-Cr 50/50  99.9%

Speciafication --- 300mesh

Nickel Chromium Alloy Ingot ( NiCr Ingot )

Purity --- Ni-Cr 80/20

Shape --- Ingot
