     Zirconium Metal (Zr)

Zirconium is a very strong, malleable, ductile, lustrous silver-gray metal. Its chemical and physical properties are similar to those of titanium. Zirconium is extremely resistant to heat and corrosion. Zirconium is lighter than steel and its hardness is similar to copper. Zirconium powder is black and is regarded as very dangerous fire hazard. Zirconium does not dissolve in acids and alkalis. Zirconium is used in alloys such as zircaloy, which is used in nuclear applications since it does not readily absorb neutrons. Also used in catalytic converters, percussion caps and furnace bricks.

Basic Information

Name: Zirconium
Symbol: Zr
Atomic Number: 40
Atomic Mass: 91.224 amu
Melting Point: 1852.0 °C (2125.15 °K, 3365.6 °F)
Boiling Point: 4377.0 °C (4650.15 °K, 7910.6 °F)
Number of Protons/Electrons: 40
Number of Neutrons: 51
Classification: Transition Metal
Crystal Structure: Hexagonal
Density @ 293 K: 6.49 g/cm3
Color: Grayish

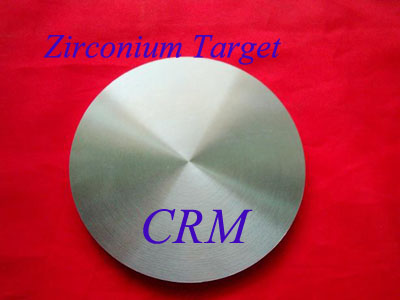

Zirconium Sputtering Targets (Zr Target)

Purity--- 99.6%,99.8%,99.9%

Shape--- Discs, Rod,  Taper, ( Dia ≤250mm, Thickness---≥1mm)

                Sheet, Plate, Rectangle ( Length---≤620mm, Width---≤250mm Thickness 1mm-50mm)

                Tube ( Outer Dia <90mm    Thickness 6-20mm  Length < 2000mm)

Application --- Primary used as  decorate thin film , hard thin film

Zirconium Pellet (Evaporation Material)

Purity--- 99%,99.5%,99.9%

Shape---  Irregular pieces, pellet, slug, Rod

Diameter--- 3-8mm

Zirconium Tube

Purity--- 99%,99.5%,99.9%

Outer Diameter --- 8.0~120mm

Thickness --- 0.5~20mm

Zirconium Rod

Purity--- 99%,99.5%,99.9% Diameter---8-150mm  or custom-made      Length---Custom-made

Zirconium Wire / Net / Basket

Purity--- 99.6%  Wire  Diameter --- 1-6mm ,  Net Mesh --- 3mmX6mm ~ 6mmX18mm

Application --- Primary be used in acid ( HBF4,H2SO4, H3BO3, HCl...), also can be used as electrode

Zirconium Foil /sheet

Purity--- 99%,99.5%,99.9%

Speciafication --- 1500mm ( Length ), 50mm (width ), 0.7-10mm ( thinckness )

Attached --- anneal zirconium sheet, it can be cold bend ,cold punch and machnie.  Bent Intension is about 207MPa, resistance 40-54 Uohm/cm Application --- Primary be used in acid ( HBF4,H2SO4, H3BO3, HCl...)

Zirconium Screw / Nut  ( Zr screw, Zr nut )

Purity--- 99%,99.5%,99.9%

Speciafication --- Universal  Standard Or custom-made

Attached --- anneal zirconium sheet, it can be cold bend ,cold punch and machnie.  Bent Intension is about 207MPa, resistance 40-54 Uohm/cm
